MANE 3332.05

Lecture 17

Agenda

• Midterm exams are not graded; still contacting students who missed
• Linear Combination Practice Problems (assigned 10/28, due 10/30)
• Chapter Six
• Attendance
• Questions?

---

Handouts

• Chapter 6 Slides
• Chapter 6 Slides marked

---

Numerical Summaries

• Called Descriptive Statistics in Chapter 6

  • Descriptive statistics help us understand the location or central tendency of data and the scatter or variability in data
  • Included in all statistical software packages, R does a good job calculating descriptive statistics

---

Central Tendency

• Ostle, et. al. (1996) define central tendency as "the tendency of sample data to cluster about a particular numerical value"

• Population mean

\[ \mu=\frac{1}{N}\sum_{i=1}^Nx_i \]

• Sample mean

\[ \bar{x}=\hat{\mu}=\frac{1}{n}\sum_{i=1}^nx_i \]

• Sample median - middle value

• Sample mode - most commonly occuring number(s)

---

Measures of Variability

• There are several statistics that measure the variability or spread present in data

• Population variance

\[ \sigma^2=\frac{\sum_{i=1}^N\left(x_i-\mu\right)^2}{N} \]

• Sample variance

\[ s^2=\hat{\sigma}^2=\frac{\sum_{i=1}^n\left(x_i-\bar{x}\right)^2}{n-1} \]

• Shortcut (Computational) Formula

\[ s^2=\frac{\sum_{i=1}^nx_i^2-\frac{\left(\sum_{i=1}^nx_i\right)^2}{n}}{n-1} \]

• Standard deviation is often used because it is measured in the original units

\[ \sigma=\sqrt{\sigma^2};\;s=\sqrt{s^2} \]

---

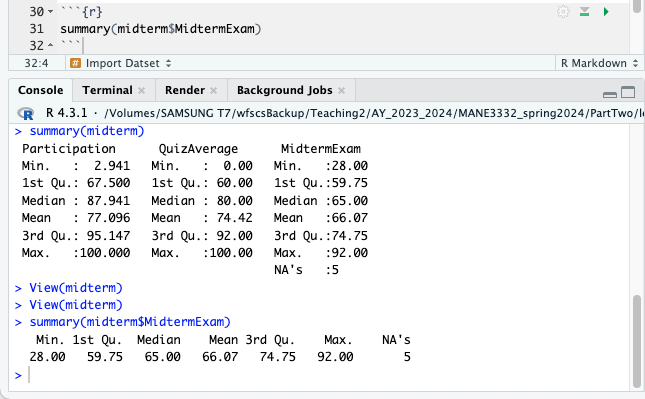

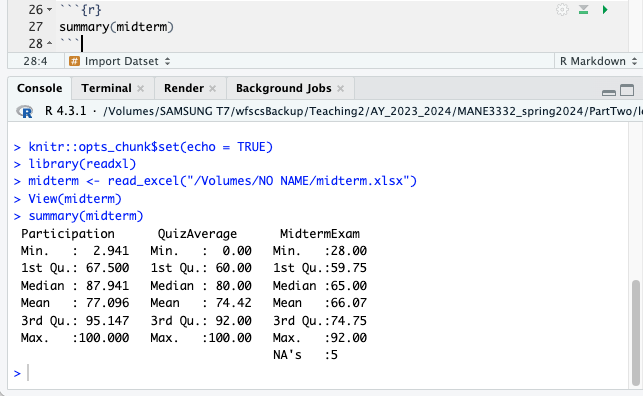

R Function Summary - Data Frame

• R code

summary(midterm)

• Output is from Spring 2024 results

---

R Function Summary - Variable

• R code

summary(midterm$MidtermExam)

• Output is from Spring 2024 results

---

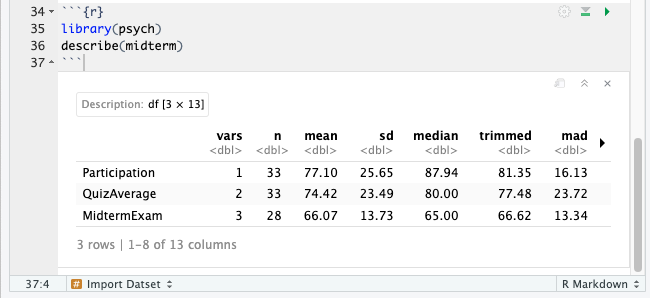

R Function Describe

• Summary() does not report variability
• Describe() has to be imported
• Describe() is part of the package psych
• R Code for descriptive statistics using psych package

library(psych)
describe(midterm)

• Psych package output from Spring 2024

---

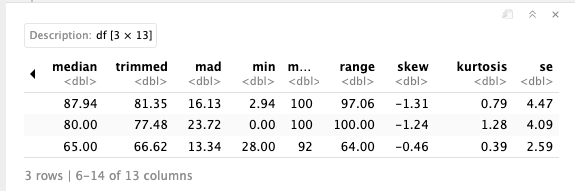

Describe Output, part 2

---

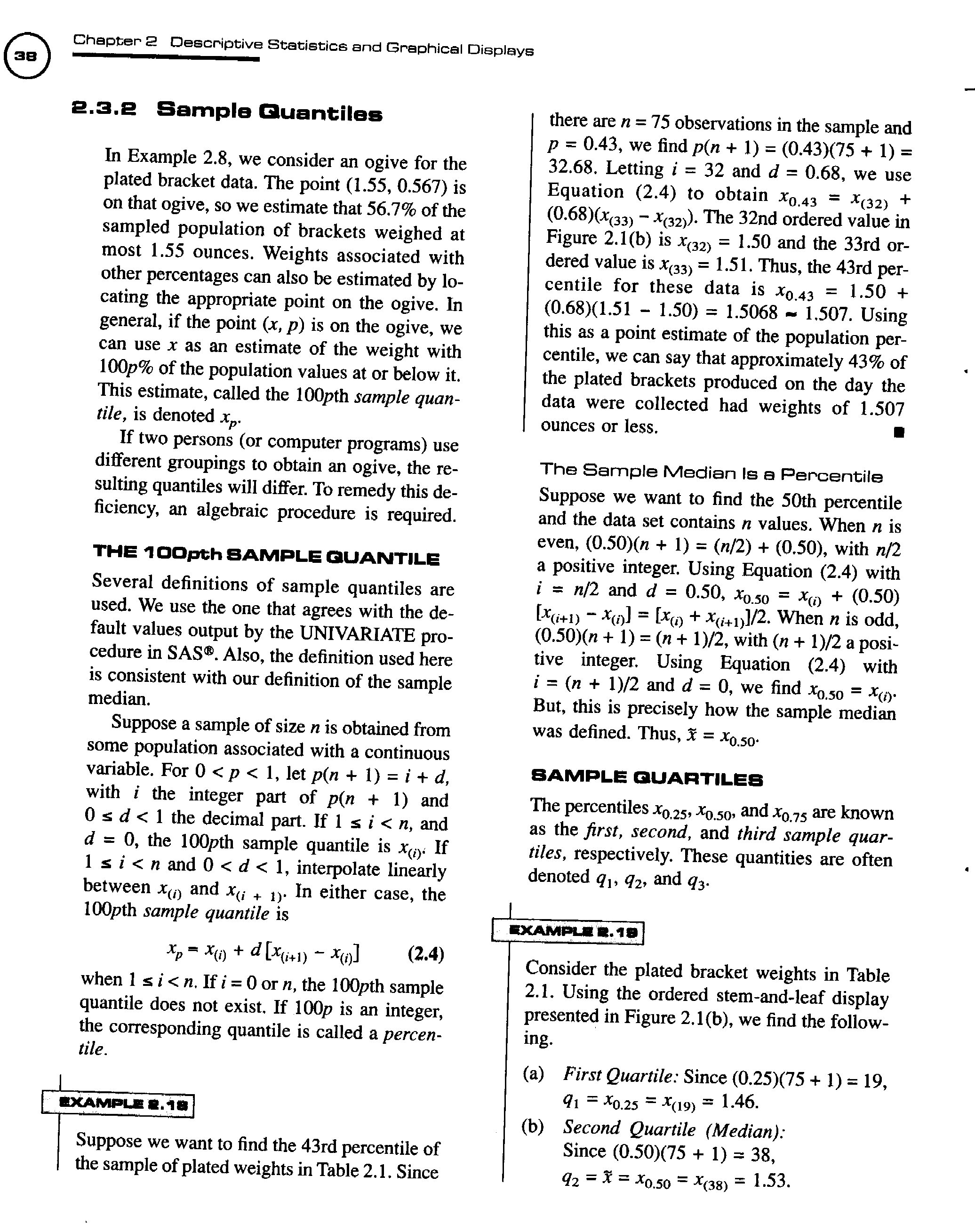

Calculating Quantiles

---

Quantile Example

---

Exploratory Data (Graphical) Analysis

• Exploratory data analysis (EDA) is the use of graphical procedures to analyze data.

• John Tukey was a pioneer in this field and invented several of the procedures

• Tools include stem-and-leaf diagrams, box plots, time series plots and digidot plots

---

Stem and Leaf Diagram

• Excellent tool that maintains data integrity

• The stem is the leading digit or digits

• The leaf is the remaining digit

• Make sure to include units

• R Code

stem(midterm$MidtermExam)

---

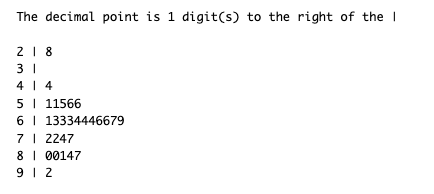

Stem and Leaf Example

• R output of a Stem and Leaf diagram

---

Histogram

• A histogram is a barchart displaying the frequency distribution information

• There are three types of histograms: frequency, relative frequency and cumulative relative frequency

• R code

hist(midterm$MidtermExam)

---

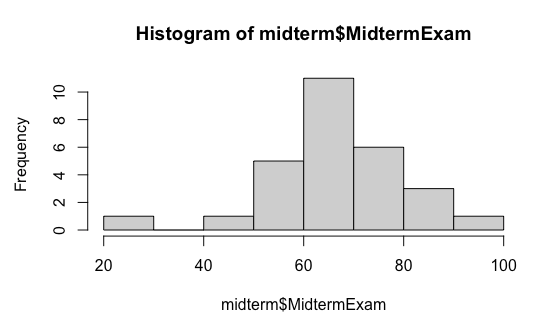

Histogram Example

• R output of histogram

---

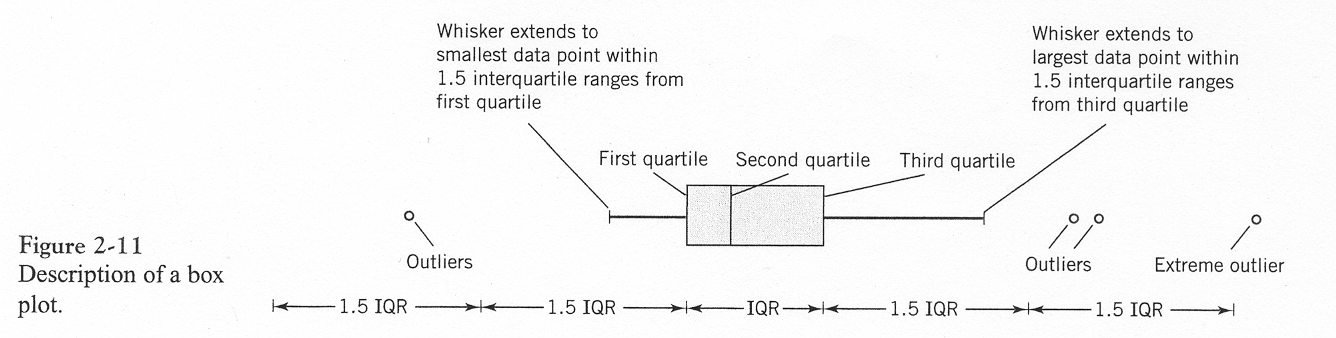

Boxplot

• Graphical display that simultaneously describes several important features of a data set such as center, spread, departure from symmetry and outliers

• Requires the calculation of quantiles (quartiles)

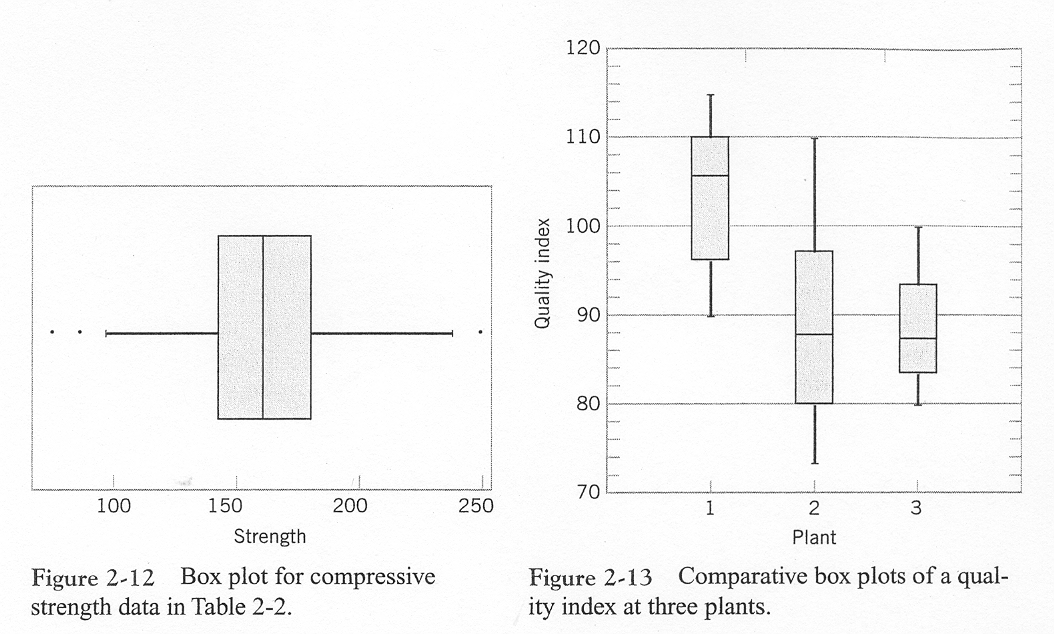

Box Plot 1

---

Box Plot 2

---

Box Plot 3

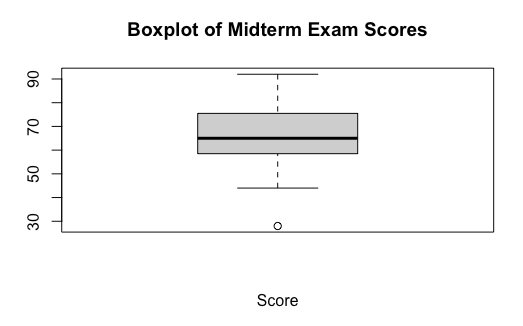

• R code for Box Plot

boxplot(midterm$MidtermExam,xlab='Score',main='Boxplot of Midterm Exam Scores')

• R Box Plot output

---

Time Series Plot

• A time series plot is a graph in which the vertical axis denotes the observed value of the variable (say \(x\)) and the horizontal axis denotes time

• Excellent tool for detecting:

  • trends,

  • cycles,

  • other non-random patterns

---

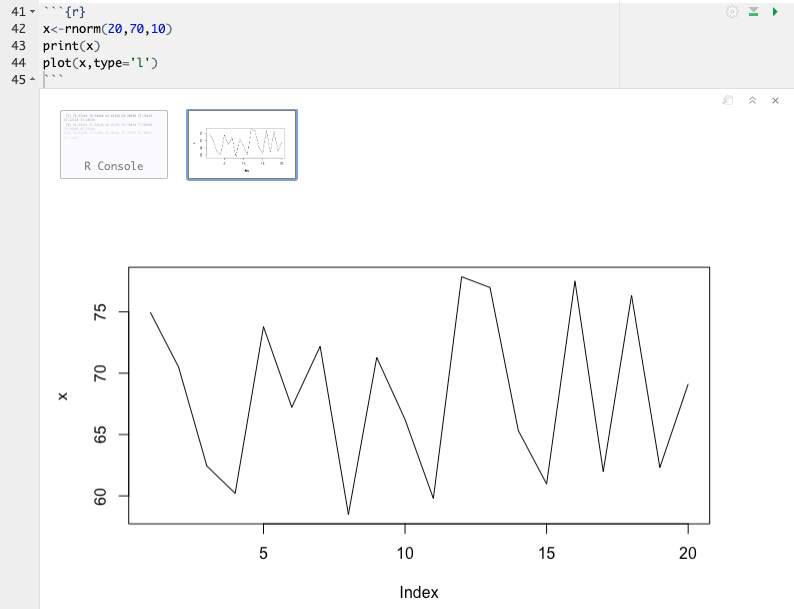

Time Series Plot in R

---

Probability Plotting

• Probability plotting is a graphical method of determining whether sample data conform to a hypothesized distribution

• Used for validating assumptions

• Alternative to hypothesis testing

---

Construction

1. Sort the data from smallest to largest, . $$ x_{(1)},x_{(2)},\ldots,x_{(n)} $$

2. Calculate the observed cumulative frequency \((j-0.5)/n\)

For the normal distribution find \(z_j\) that satisfies

\[ \frac{j-0.5}{n}=P(Z\leq z_j)=\Phi(z_j) \]

1. Plot \(z_j\) versus \(x_{(j)}\) on special graph paper

---

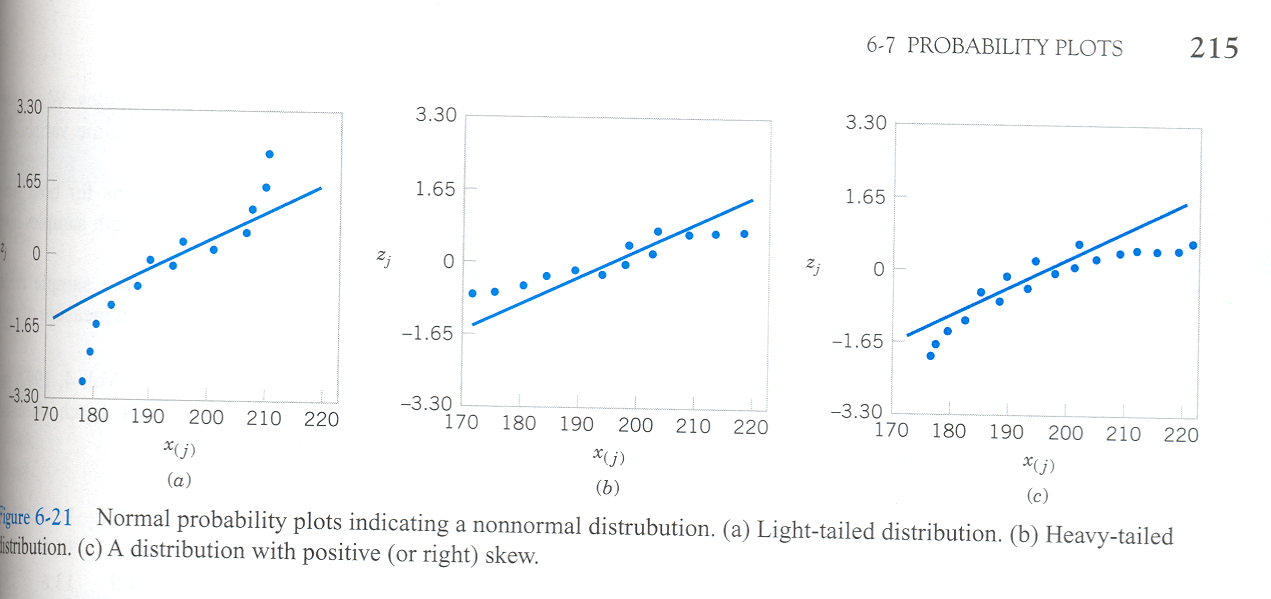

Usage

• If the data plots as a straight line, the assumed distribution is correct

---

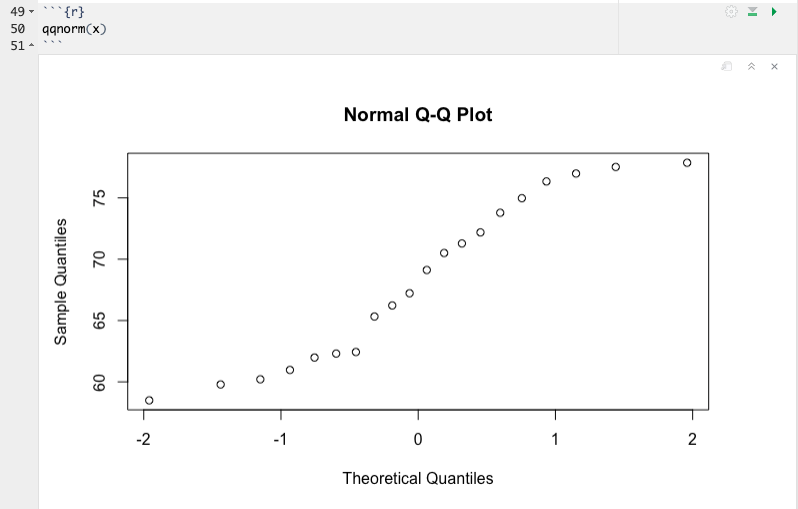

Probability Plot Example 1 in R

---

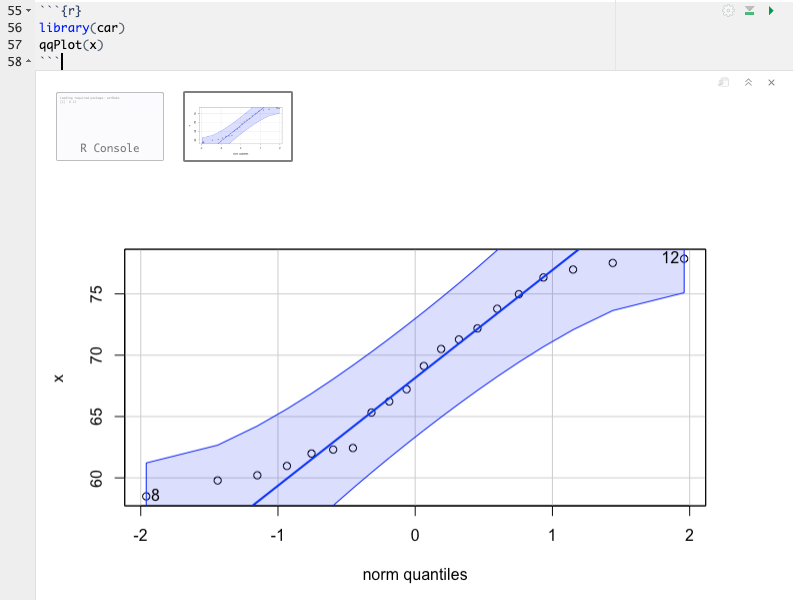

Probability Plot Example 2

• Difficulty from example one is how close to straight is "good enough"
• Add confidence bands to normal probability plot
  • Requires package car to be added to R
  • If all points are within the band, we are 95% confident that the sample is from a normal distribution. However if one or more points are not within band, the data is not from a normal distribution

---

---

Multivariate Data

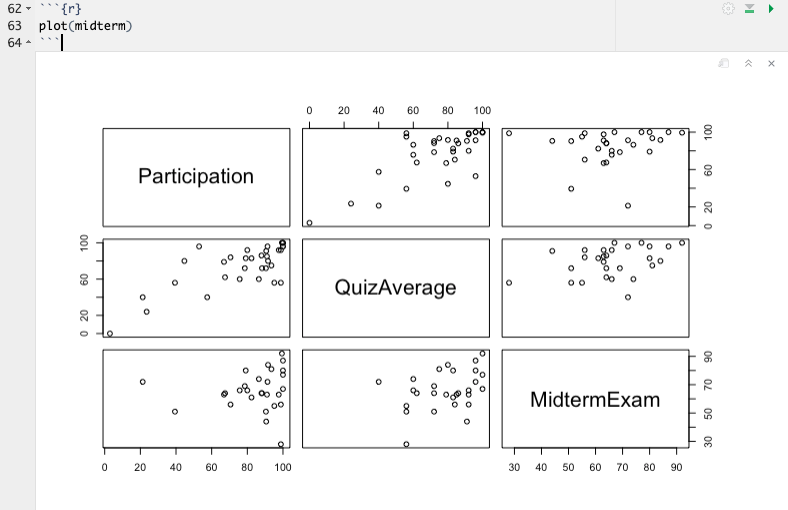

Matrix of Scatter Plot in R

---

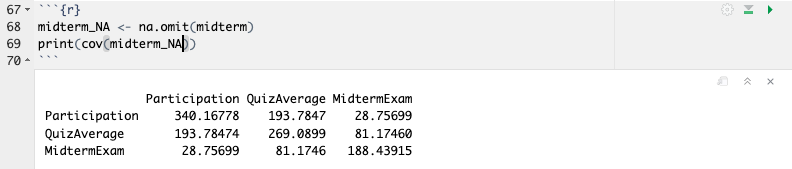

Covariance in R

---

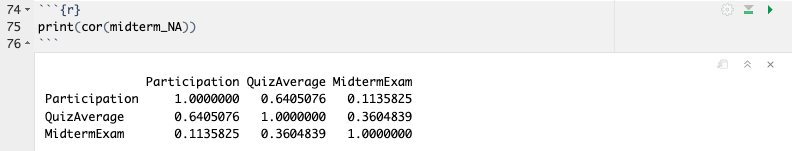

Correlation
