MANE 3351 - Manufacturing Engineering Analysis

Laboratory Two Assignment

Assigned: September 17, 2025

Due: September 24, 2025 (before 9:30 AM)

Utilize Arduino (controlled by Raspberry PI or latop) Input/Output to control blinking an LED.

Equipment Needed

In addition to the materials used in Lab One, you will need the following additional items.

3 Additional m-m jumper cables
1 Arduino Uno
1 USB printer cable

Assignment

Step One

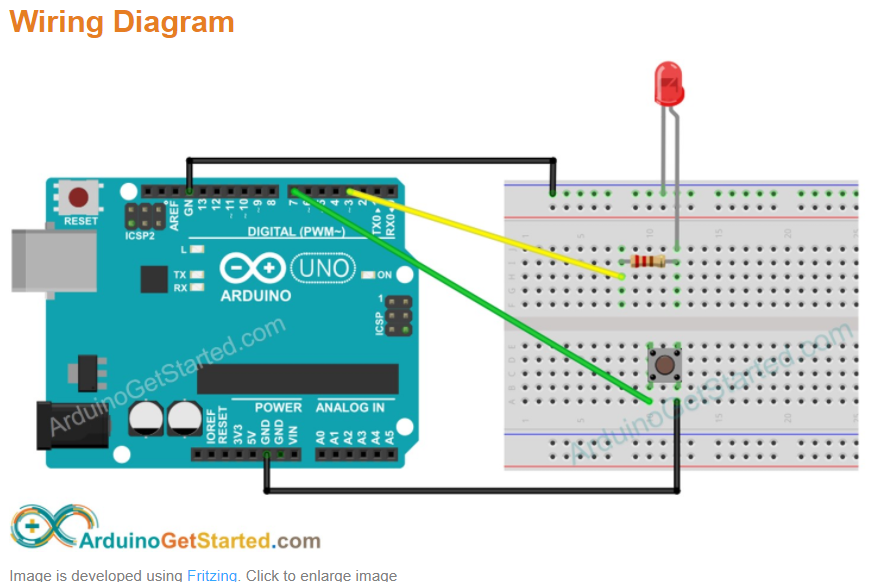

Construct the circuit shown below on a breadboard and connect to an Arduino as shown below.

schematic

Step Two

Open the Arduino IDE on the Raspberry Pi and add your documentation to this sketch.

Step Three

Below you documentation, enter the sketch code.

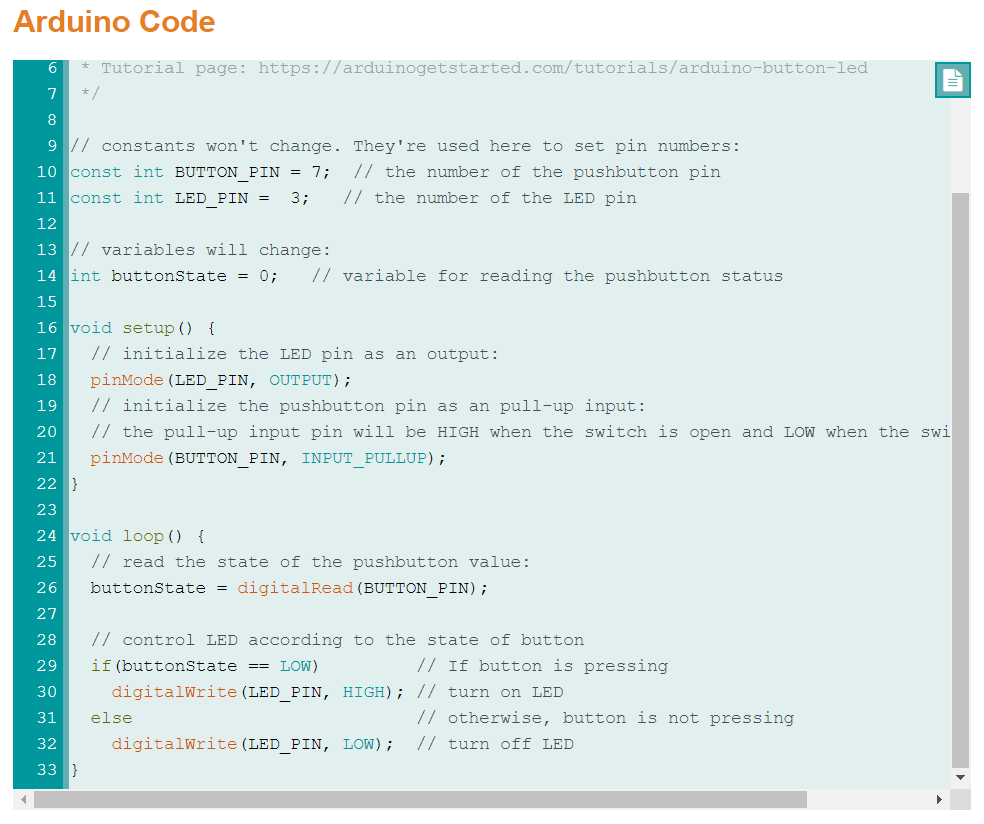

Arduino Sketch

Step Four

Save and run the Sketch. Hopefully, there will be no errors in the circuit and code and it will run immediately. Debug the schematic and code until everything works.

Step Five

Meet with Dr. Timmer before the deadline (September 24, 2025 at 9:30 PM) and demonstrate your laboratory two project.
