MANE 3351

Lecture 4

Classroom Management

Agenda

  • Numerical Representations in a computer
  • Lab 1 due September 17
  • 4 students have not linked GitHub account through Homework 0
  • 1 student has not picked up their Raspberry Pi
  • Laboratory session will not meet, I will be in my office awaiting lab 1

Resources

Handouts

Lecture 4 Content

Embrace Your Inner Skeptic

Definition: Numerical Methods

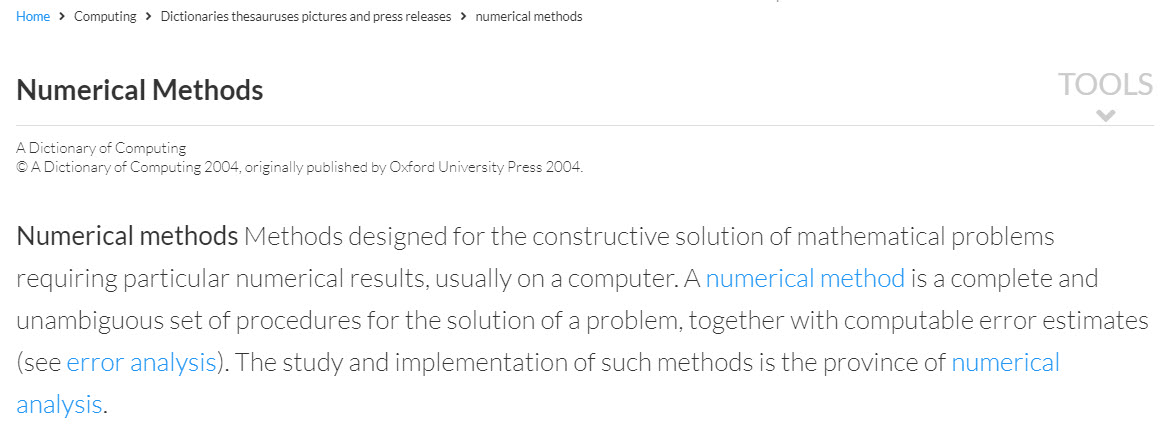

Numerical Methods, definition1

Embrace your Inner Skeptic

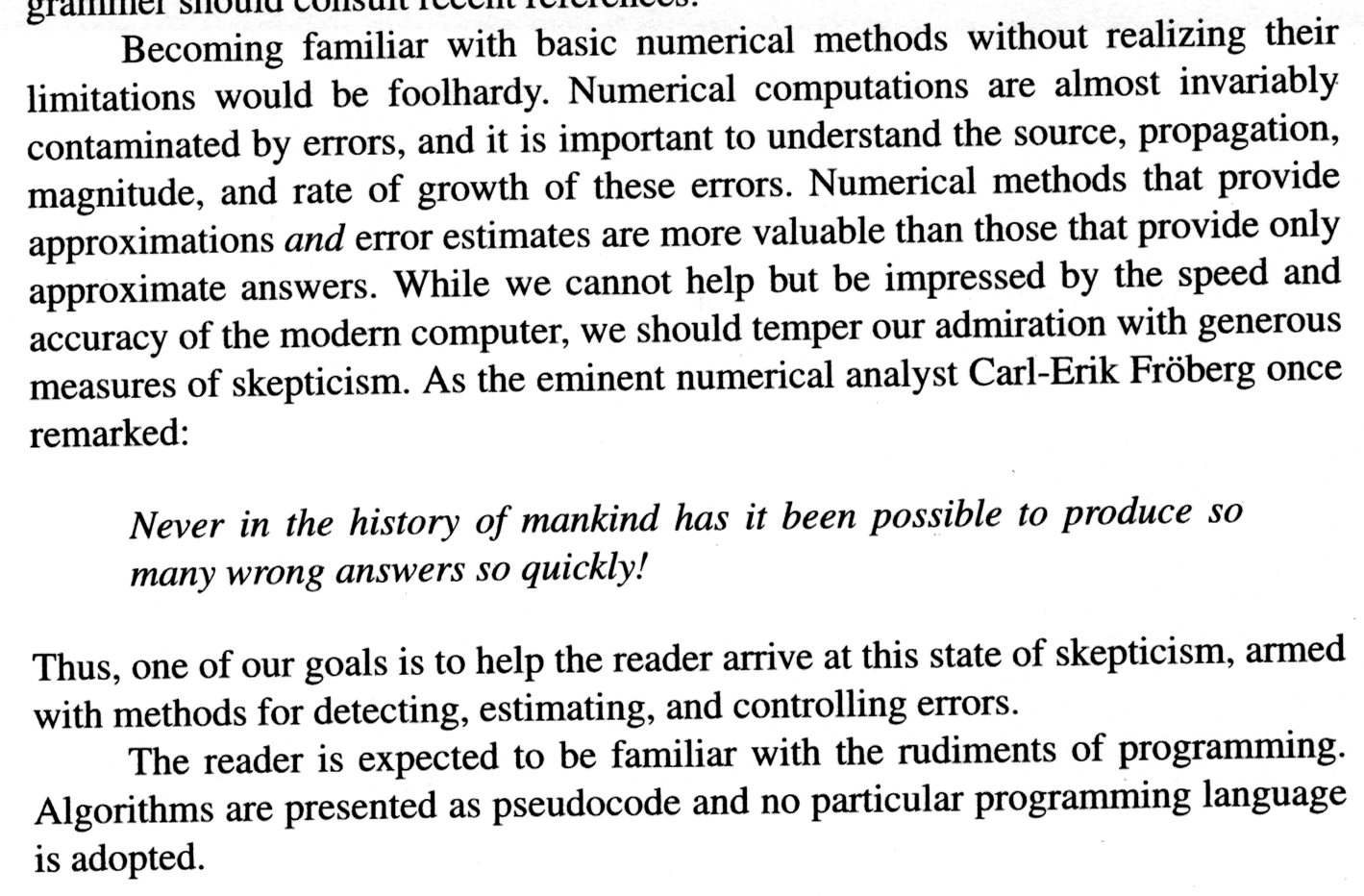

embrace your inner skeptic2

Evaluating Numerical Methods

Numerical methods should consider these two evaluation criterion :

  • Accuracy (or error) analysis
  • Speed

Introduction to Error Analysis

Error Measurements

Let \(v_A\) be the approximate value and \(v_E\) be the exact value

  • Absolute error: \(|v_A-v_E|\)
  • Relative error: \(\frac{|v_A-v_E|}{v_E}\)
  • Percentage error: \(\frac{|v_A-v_E|}{v_E}\times 100\%\)

Sources of Error

Sources of Errors

  • Round-off errors are due to the fact that the computers represent numbers in a finite number of bits and bytes
  • Truncation errors are errors that emerge from the approximation of the mathematical model
  • Model errors are due to the fact that the mathematical model usually is an approximation of the physical reality

Number Types in Python

Python supports int, float, and complex.

  • Integers can be represented exactly
  • Float and complex variables can be represented approximately
  • "Floating-point numbers are usually implemented using double in C"7

Computer Implementation of Floats

IEEE Standard 754 Floating Point Numbers

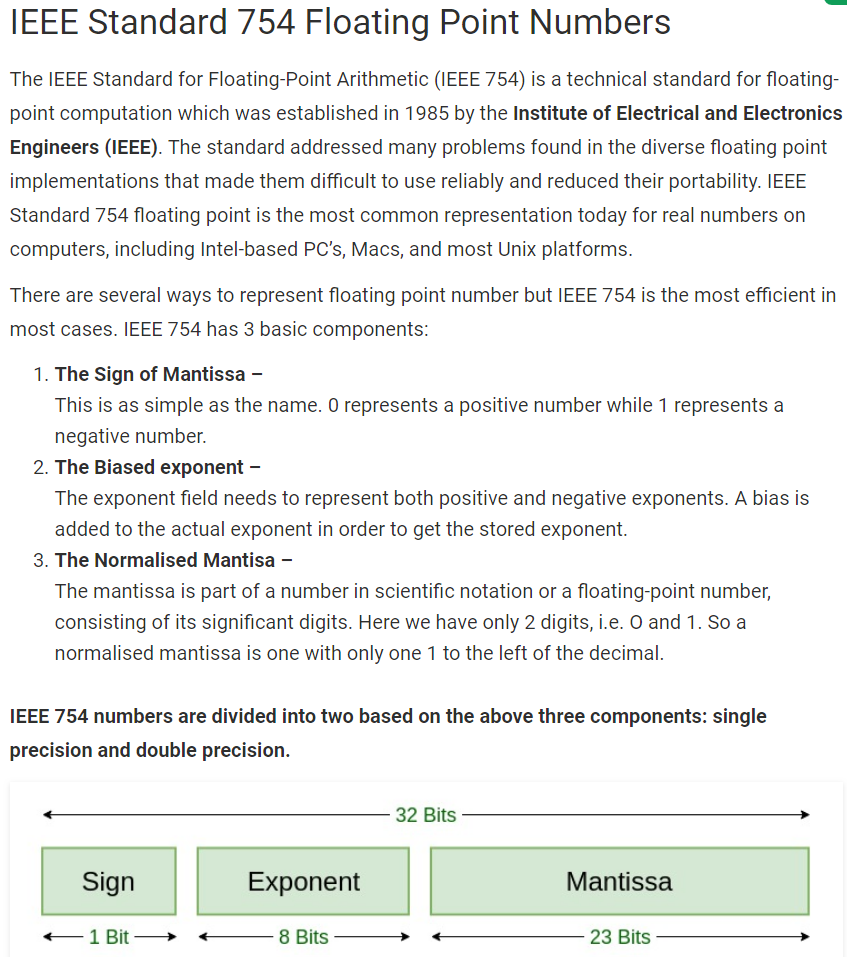

IEEE Standard 754 floating point numbers3

Floating Point Representation

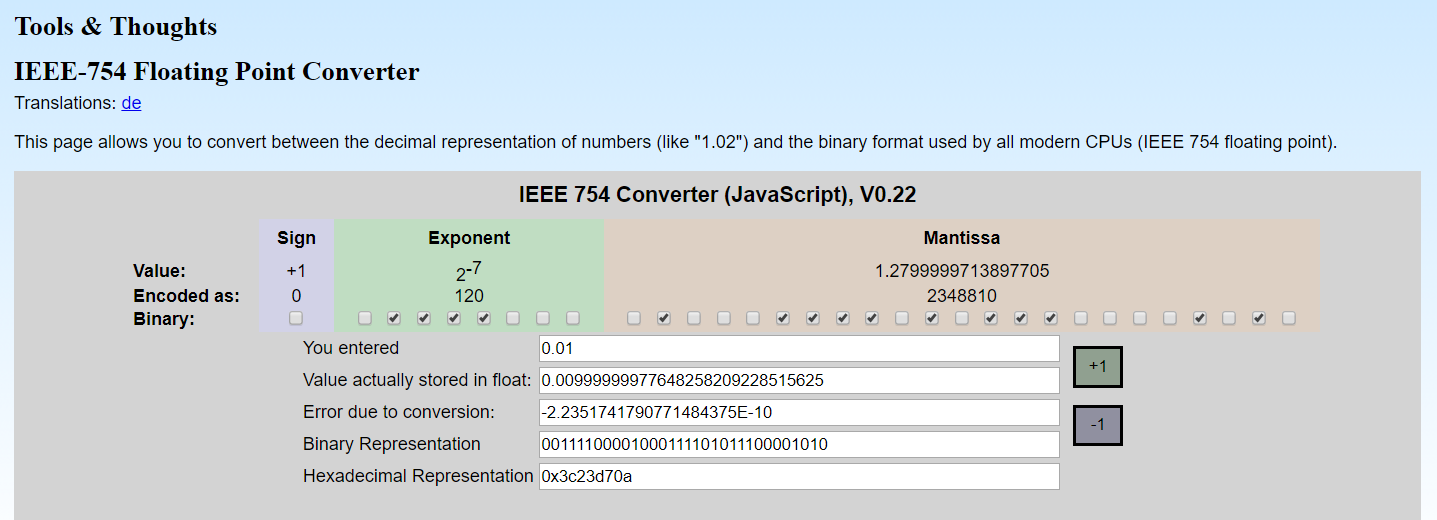

floating point convertor4

Perils of Floating Point

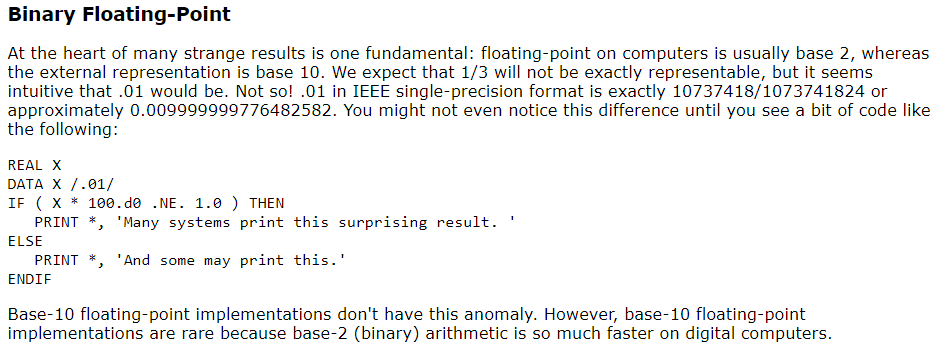

binary floating point5

Single Precision Range

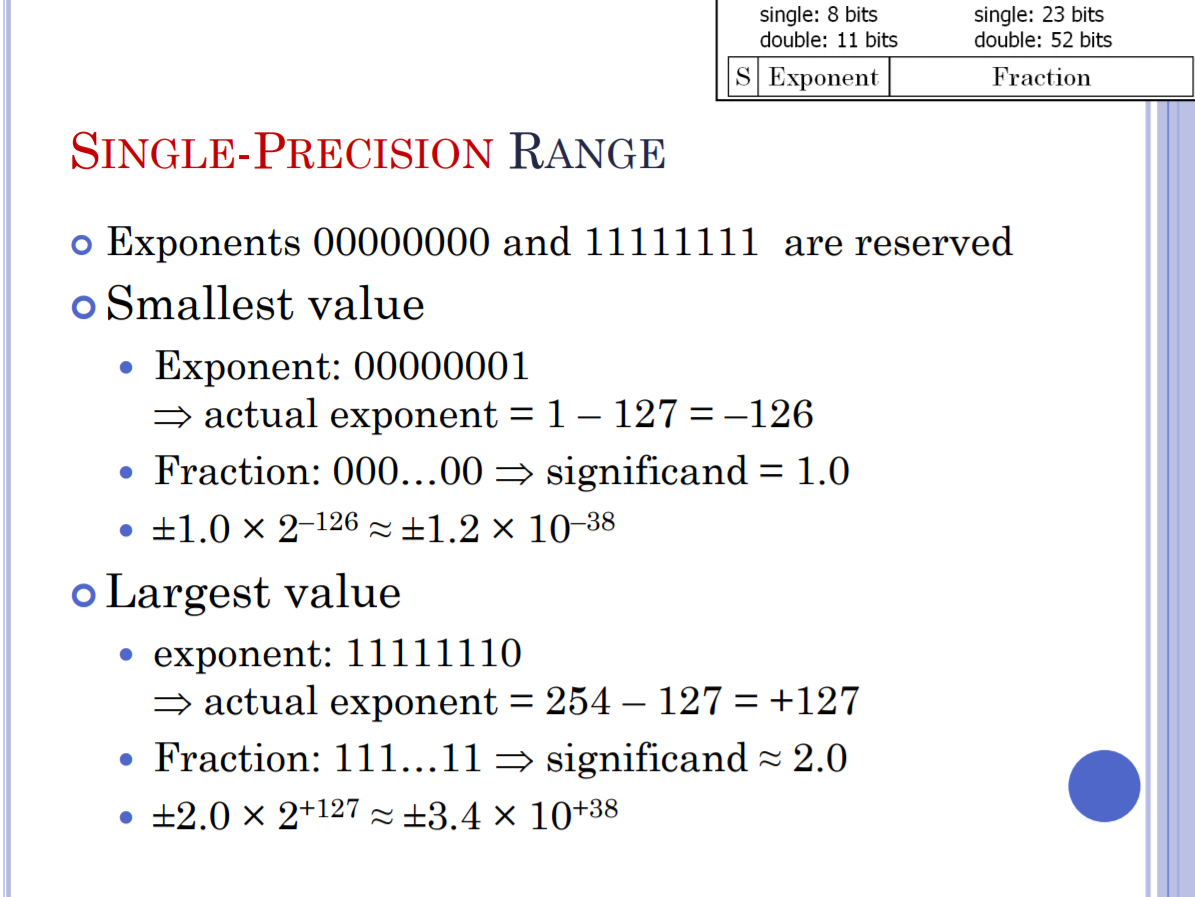

range of single-precision numbers6

Single Floating-Point Precision

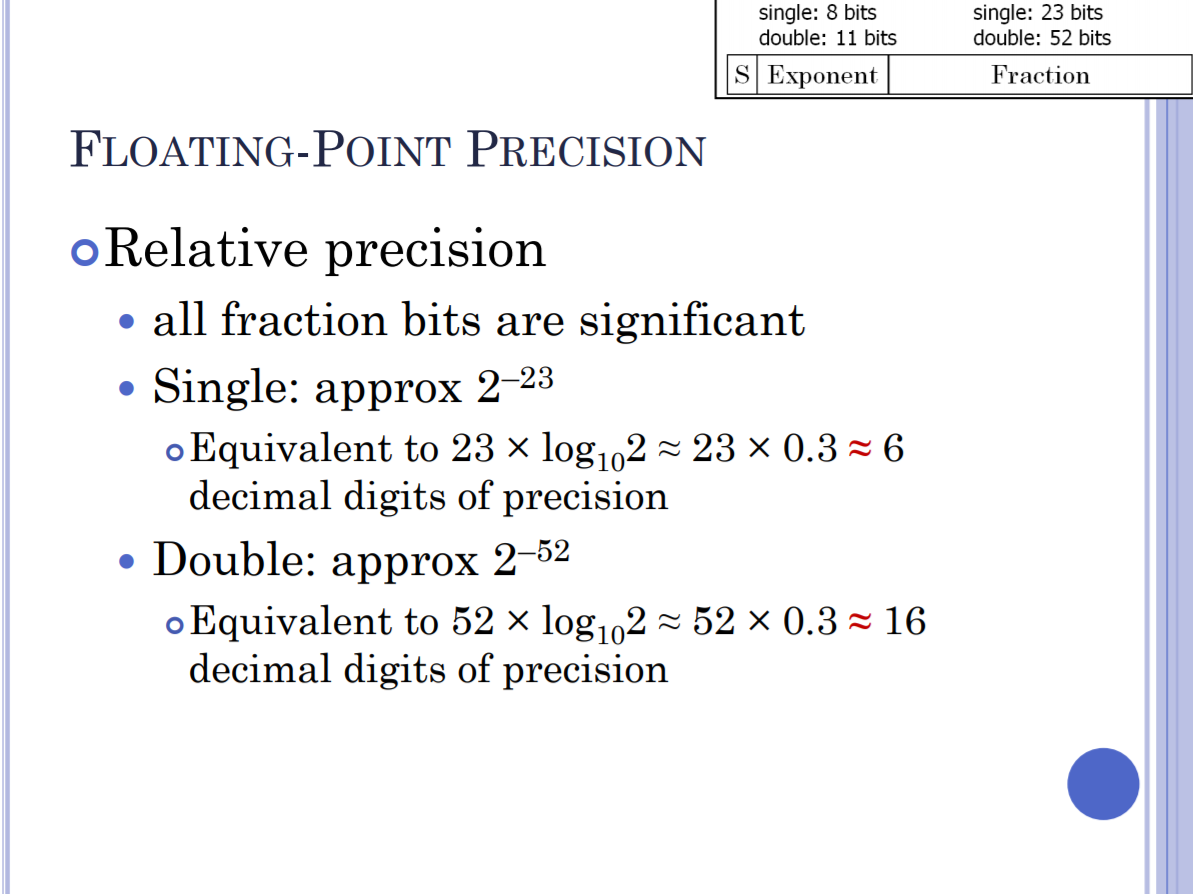

precision of single-precision numbers6

Double Precision Range

Double Floating-Point Precision

  1. "numerical methods." A Dictionary of Computing. Retrieved August 27, 2019 from Encyclopedia.com: https://www.encyclopedia.com/computing/dictionaries-thesauruses-pictures-and-press-releases/numerical-methods ↩

  2. Cheney and Kincaid (2004), Numerical Mathematics and Computing, 5th edition. ↩

  3. Geeks for Geeks. Retrieved August 28, 2019 from: https://www.geeksforgeeks.org/ieee-standard-754-floating-point-numbers/ ↩

  4. FloatConvertor. Retrieved August 28, 2019 from: https://www.h-schmidt.net/FloatConverter/IEEE754.html ↩

  5. Perils of Floating Point. Retrieved August 28, 2019 from: http://www.lahey.com/float.htm ↩

  6. IEEE 754 Floating Point Representation. Retrieved August 28, 2019 from: http://cs.boisestate.edu/~alark/cs354/lectures/ieee754.pdf ↩↩

  7. Python 3.12.5 Documentation » The Python Standard Library » Built-in Types. Retrieved September 6, 2024 from: https://docs.python.org/3/library/stdtypes.html ↩
