  • Today's topic is numerical integration.
  • This is a major new topic after root finding.
  • Trapezoid Rule

Introduction to Numerical Integration

  • In layman's terms, an integral calculates the area under a curve
  • Frequently used in engineering analysis

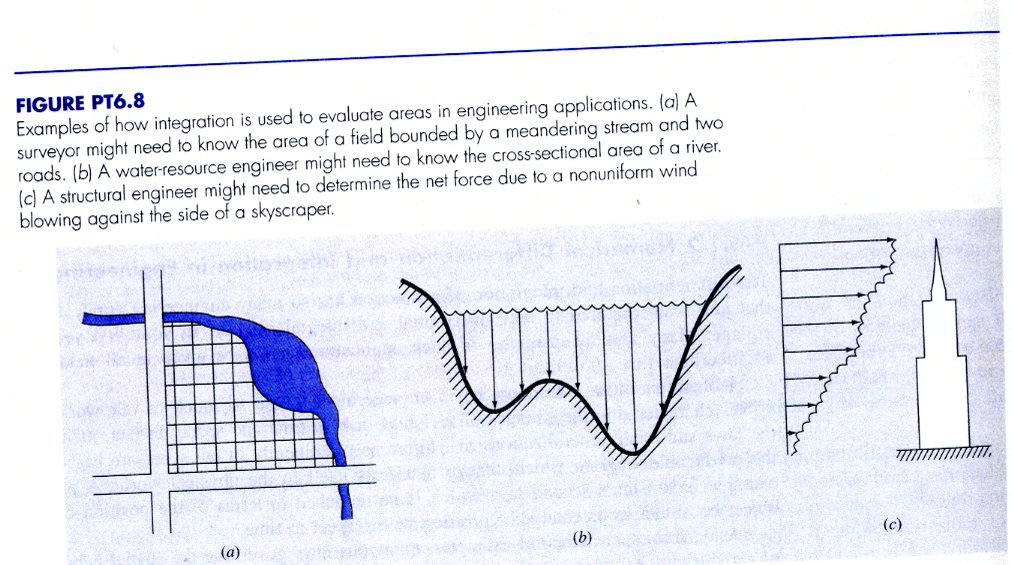

Examples of integration

Another Integration Example

Definitions

Cheney and Kincaid (2004)1 provide the following definitions

  • Indefinite integral : \(\int x^2\;dx=\frac{1}{3}x^3+C\)
  • Definite integral: \(\int x^2\; dx = \frac{8}{3}\)

Numerical Integration

Kiusalaas (2013)2 suggest three major approaches to numerical integration that we will investigate:

  1. Newton-Cotes

a. Trapezoid rule (n=1)

b. Simpson's rule (n=2)

c. 3/8 Simpson's rule (n=3)

  1. Romberg Integration

  2. Gaussian Quadrature

Note: there are many different techniques for numerical integration than the ones listed above

Newton-Cotes Formulas

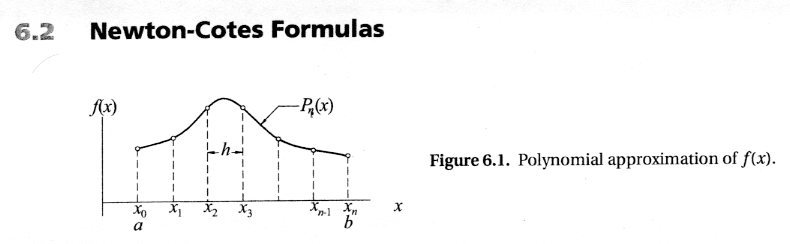

Kiusalass (2013)2 provide the following illustration to explain Newton-Cotes techniques

Newton Cotes Approach

Trapezoid Rule

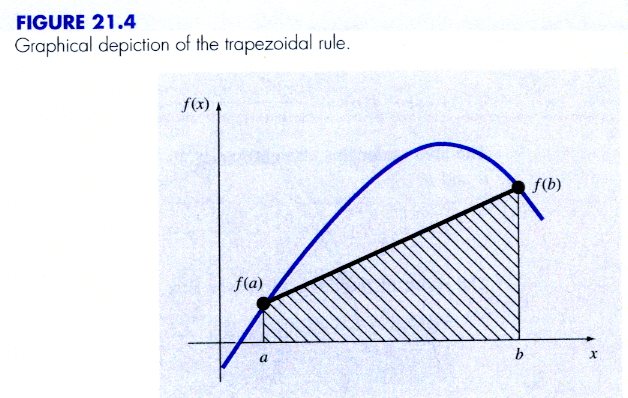

Chapra and Canale (2015)3 provide the figure shown below illustrating the trapezoid rule

Trapezoid Rule

Trapezoid Rule, continued

Chapra and Canale (2015)3 provided the following formulae

  • \(I=(b-a)\frac{f(a)+f(b)}{2}\)
  • \(E=-\frac{1}{12}f^{\prime\prime}\left(\xi\right)\left(b-a\right)^3\)

Multiple Applications of the Trapezoid Rule

Typically, the region form \(a\) to \(b\) is sub-divided into multiple regions and then the Trapezoid Rule for each region is applied. Chapra and Canale (2015)3 illustrate this concept.

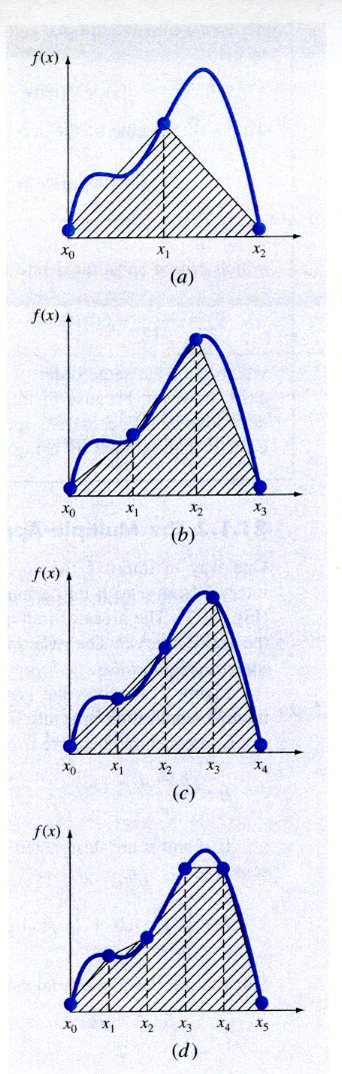

Multiple Trapezoid Rules

Uniform Spacing

Cheney and Kincaid (2004)1 the following formula for composite (multiple) applications of the Trapezoid Rule

\[ \int_a^b=f(x)dx\approx T(f;P)=h\left\{\sum_{i=1}^{n-1}f\left(x_i\right)+\frac{1}{2}\left[f\left(x_0\right)+f\left(x_n\right)\right]\right\} \]

Pseudo-code

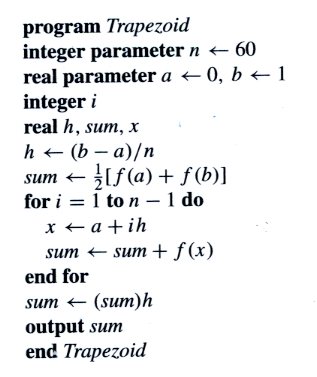

Cheney and Kincaid (2004)1 provided the following pseudo-code for the composite trapezoid rule

Trapezoid Rule Pseudo-code

Python Code for Multiple Trapezoid Rule Applications

import math
def f(z):
    return (math.exp(-0.5*z**2)/((2.0*math.pi)**0.5))

n=4
a=-5.0
b=0.0
h=(b-a)/n
sum=0.5*(f(a)+f(b))
for i in range(1,n):
    x=a+i*h
    sum=sum+f(x)
sum=sum*h
print("The area is {} for {} sub-intervals".format(sum,n))
