MANE 6313

Week 6, Module C

Student Learning Outcome

• Select an appropriate experimental design with one or more factors,
• Select an appropriate model with one or more factors,
• Evaluate statistical analyses of experimental designs,
• Assess the model adequacy of any experimental design, and
• Interpret model results.

Module Learning Outcome

Interpreting interactions in factorial designs.

---

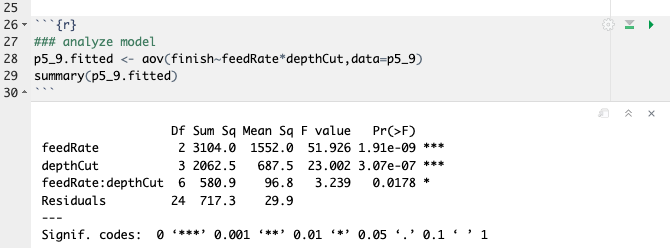

Interaction Analysis for Problem 5.9

Recall

---

Rules for Interpreting Interactions

Limited to models with two-factor interactions and main effects

1. If an interaction is statistically significant for a two-factor interaction, use the interaction plot to select the optimal setting
2. If the interaction is not statistically significant for a two-factor interaction, use the main effect plot to select the optimal setting
3. More sophisticated designs are more difficult to interpret

---

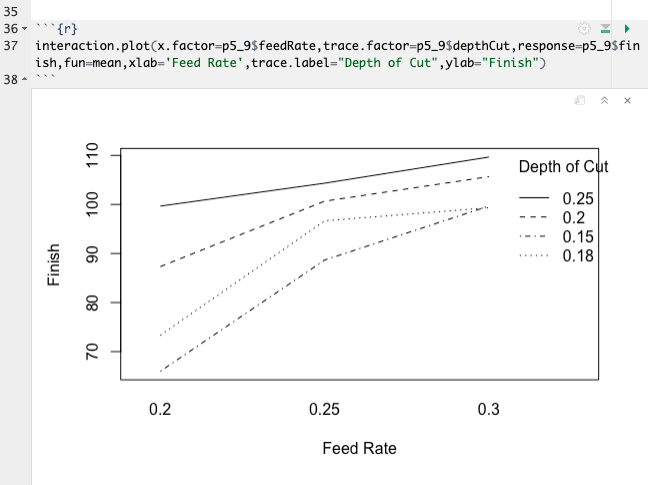

Interaction Plot

---

Comments on Example Interaction Plot

• Lines are not parallel, therefore interaction is statistically significant
• Maximum surface finish is found when Feed Rate = 0.3 and Depth of cut is 0.25
• Minimum surface finish is found when Feed Rate=0.2 and Depth of cut is 0.15

---

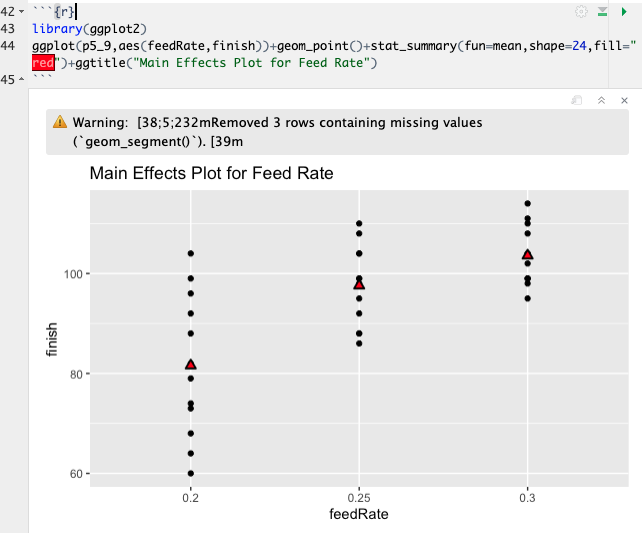

Main Effect Plot for Feed Rate

---

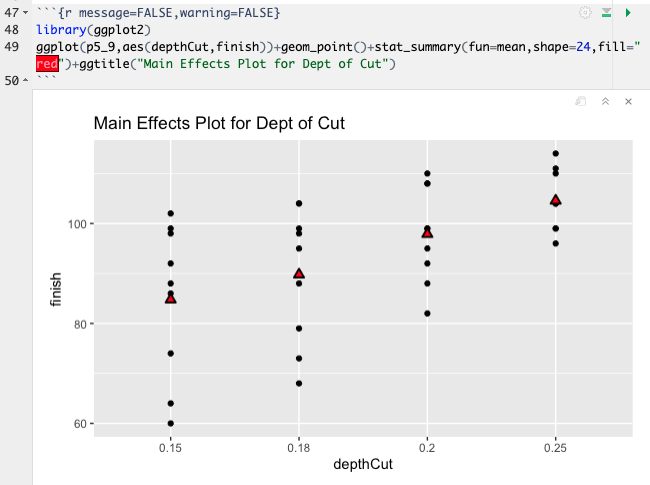

Main Effect Plot for Depth of Cut

---

R Demonstration
