Cover Specifications

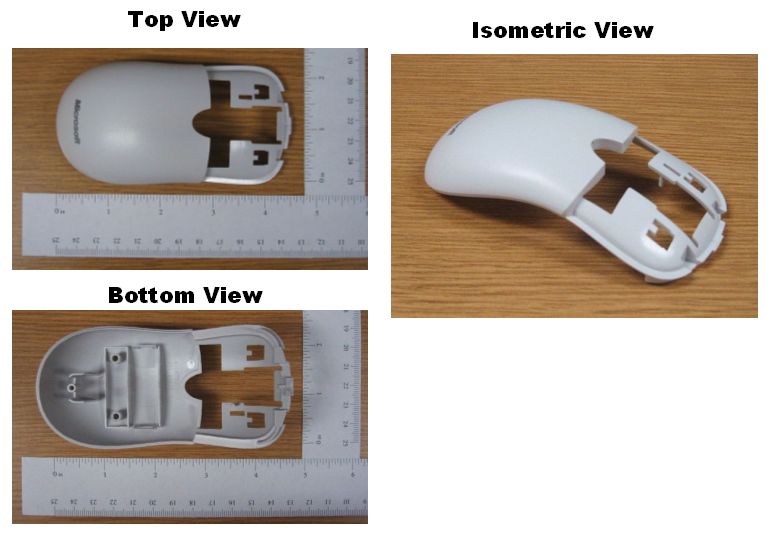

Cover: This part is made from WHITE ABS plastic by an injection molding process. The plastic injection machine used can make 8 parts at a time. It makes up most of the visible top portion of the mouse.

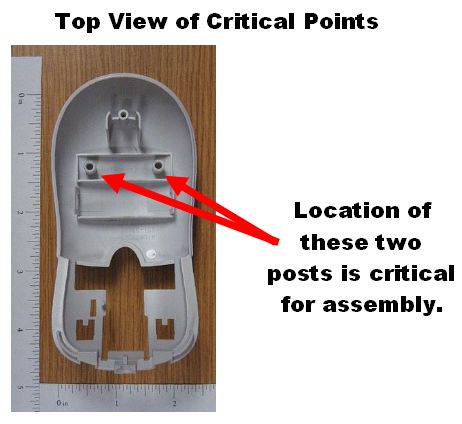

2 Screw Mounts for Weight Located on COVER: The 2 screw mounts are inserted into a pair of matching holes located on the part BUTTONS (They have a very tight fit).

Outer Diameter Specifications for the 2 Posts:

Upper Specification Limit (USL): 0.2002"

Lower Specification Limit (LSL): 0.1918"

Additional Quality Issues

The following production issues are associated with non-conforming covers:

Short shot,
Poor weld line,
Sink spots,
Mold flashing,
Warpage.

The following production issues are non-conformities on the cover:

Bubbles,
Burn spot,
Surface imperfections,
Black streaking,
Part sticking in the mold.

Click Here To Go Back To The Inspection Station.

Click Here To Go Back To The Bill Of Materials.

Part #	Component	Material Used	Mfg. Process	Qty.	Production Rate	Manufacturing Cost $ / Piece
1	Cover	ABS White Plastic	Injection Molding	1	8 at a time	$ 0.300
