Cover:
Part # |
Component |
Material Used |
Mfg. Process |
Qty. |
Production Rate |
Manufacturing Cost $ / Piece |
1 |
Cover |
ABS White Plastic |
Injection Molding |
1 |
8 at a time |
$ 0.300 |

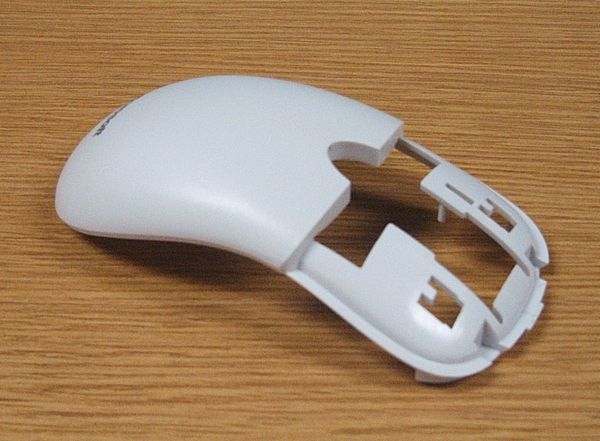

Cover: This part is made from WHITE ABS plastic by an injection molding process. The plastic injection machine used can make 8 parts at a time. It makes up most of the visible top portion of the mouse.
Quality Issues
The cover shaft diameters are a critical quality characteristic and are measured and compared against specification limits.
Visual inspection is performed for each cover. The following issues result in a part being classified as non-conforming: short shot, poor weld line, sink spots, mold flashing, and warpage. The following issues are classified as a non-conformity: bubbles, burn spot, surface imperfections, black streaking, and part sticking in the mold.
