Diffuser:
Part # |
Component |
Material Used |
Mfg. Process |
Qty. |
Production Rate |
Manufacturing Cost $ / Piece |
10 |
Diffuser |
Clear Plastic |
Injection Molding |
1 |
16 at a time |
$ 0.090 |

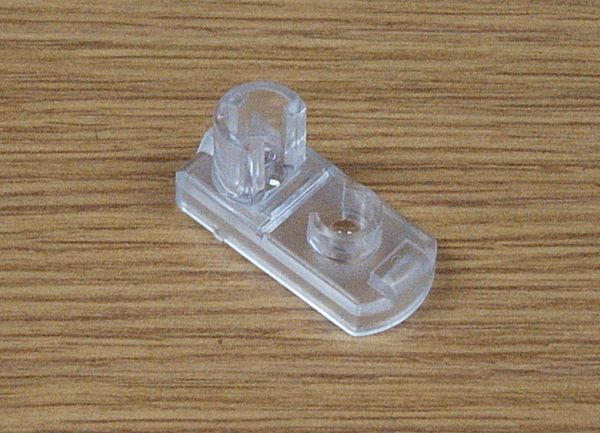

Diffuser: This is a clear plastic part that fits on the LED that projects the beam of light which bounces off from any surface and bounces back to the Diffuser and thus controls the movement of the cursor on the computer screen. This part is made through an injection molding process at a rate of 16 pieces at a time.
Quality Issues
Visual inspection is performed for each diffuser. The following issues result in a part being classified as non-conforming: discoloration, voids, jetting, weld lines and warpage. The following issues are classified as a non-conformity: black specks, brittleness, burn marks, splay marks and sticking in cavity, and part sticking in the mold.
