PCB (Printed Circuit Board):

Part #
Component
Material Used
Mfg. Process
Qty.
Production Rate
Manufacturing Cost $ / Piece
11
PCB
Fiber Resin Board, Solder & Electronic Components
Robotic Assembly & Soldering
1
2 at a time
$ 3.550

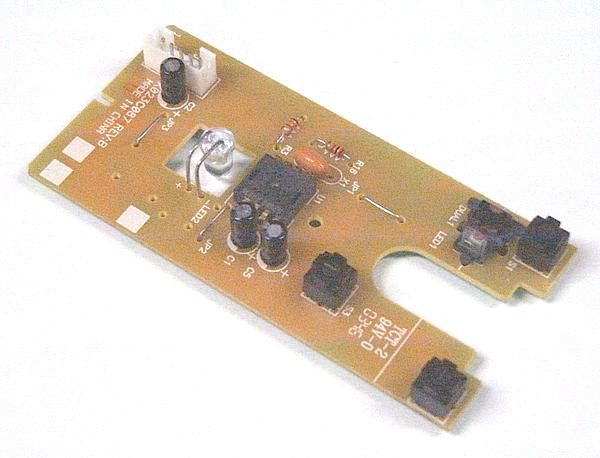

PCB Assembly: This is the printed circuit board where all of the electronic components of the mouse are placed. It is placed into the Base by the second operator in the subassembly workstation.
