MANE 6313¶
Week 14, Module A¶
Student Learning Outcome¶
- Select an appropriate experimental design with one or more factors,
- Select an appropriate model with one or more factors,
- Evaluate statistical analyses of experimental designs,
- Assess the model adequacy of any experimental design, and
- Interpret model results.
Module Learning Outcome¶
Evaluate central composite designs using R
Central Composite Design in R¶

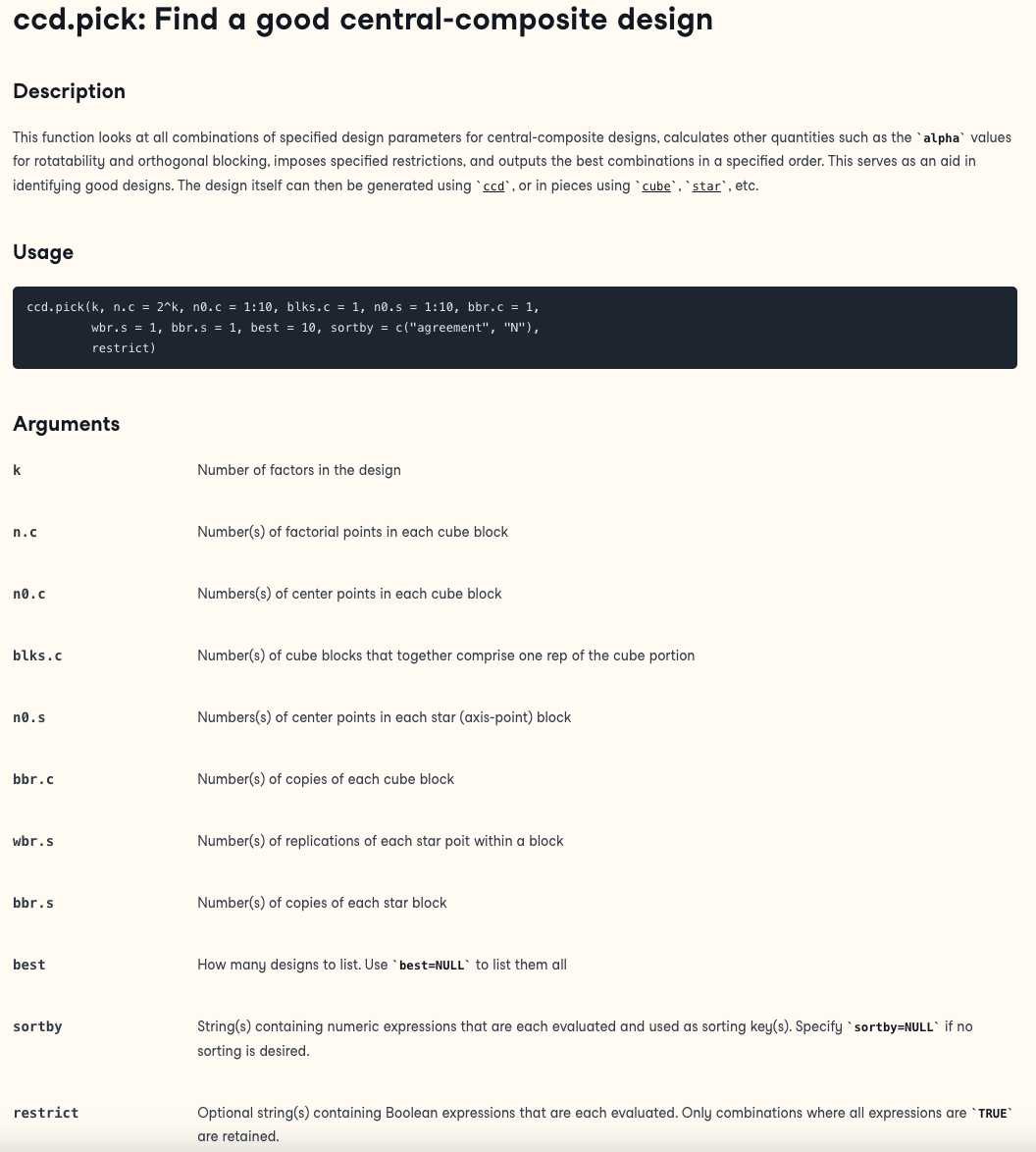

ccd.pick()¶
Example Problem¶

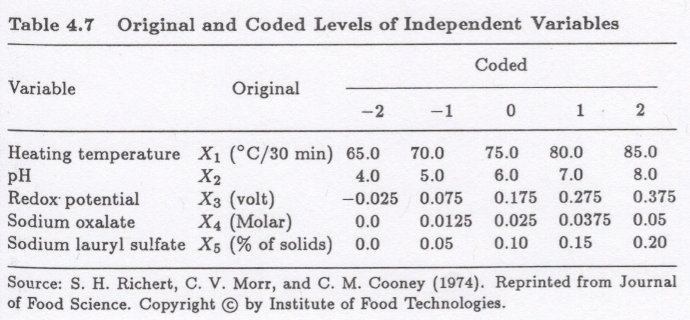

Data from Example Problem¶

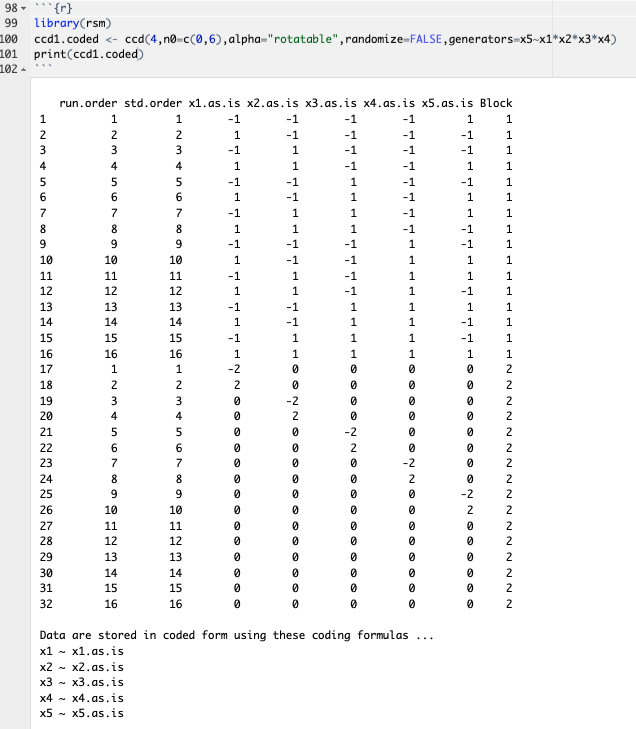

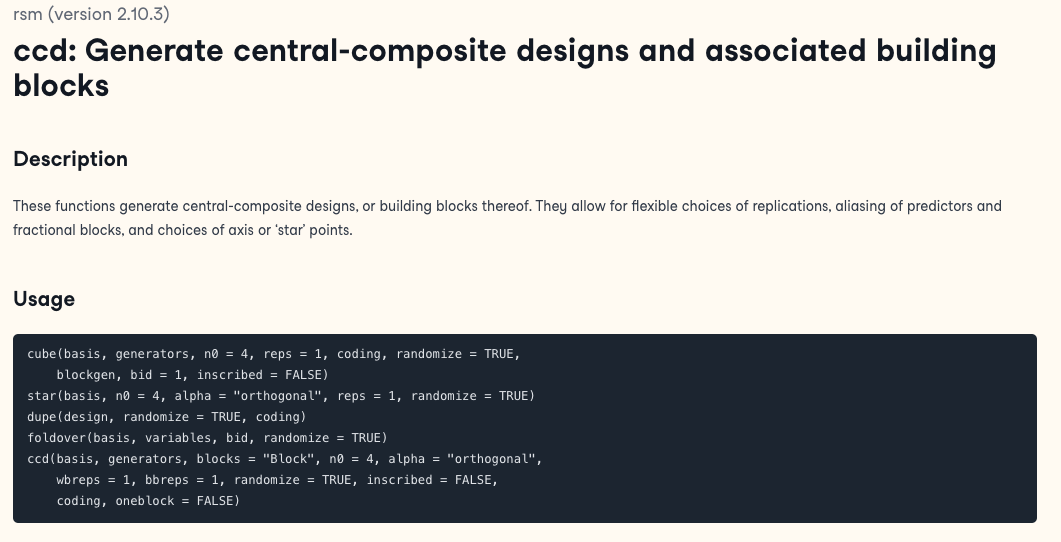

ccd() to Create Data Frame¶

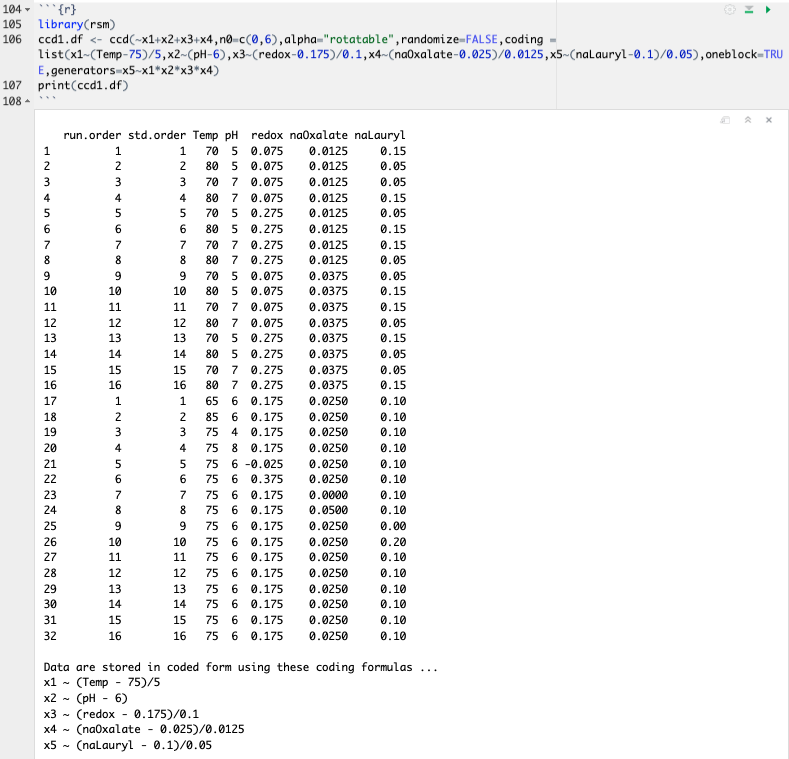

ccd() with Uncoded Data¶

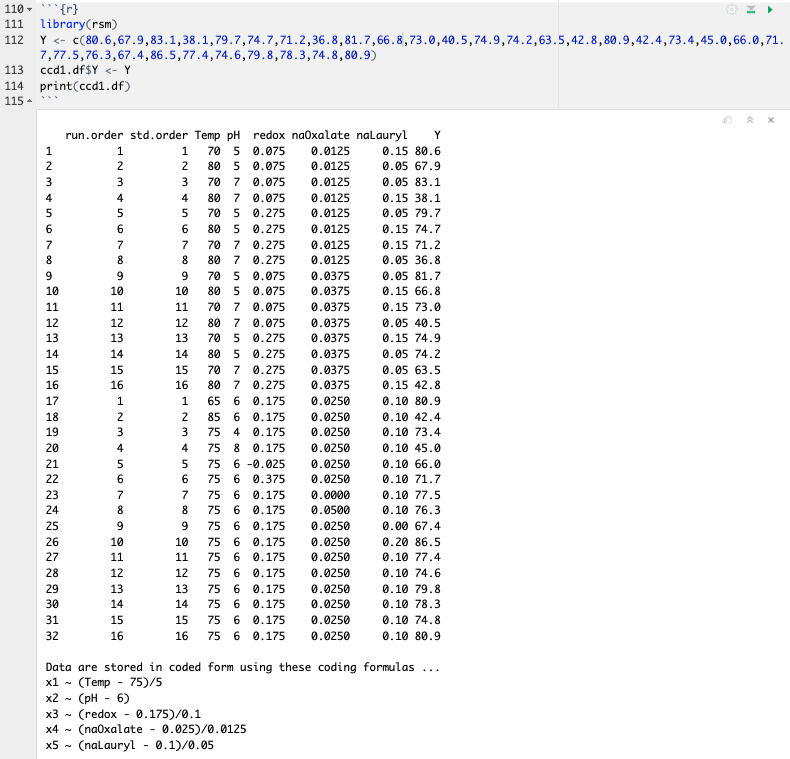

Adding Response Variable¶

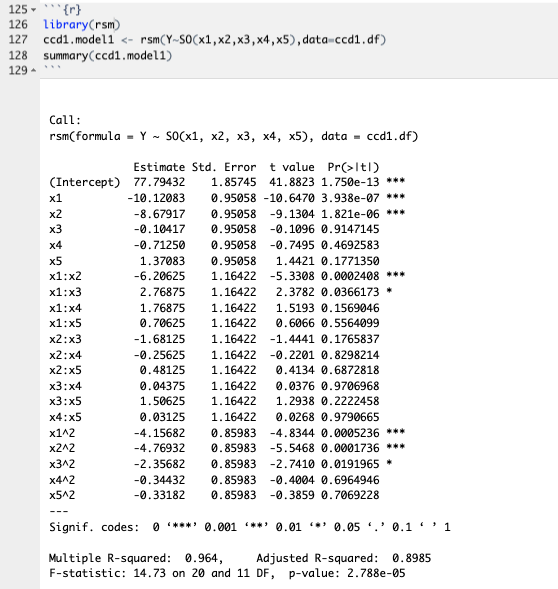

First Model - Coefficients¶

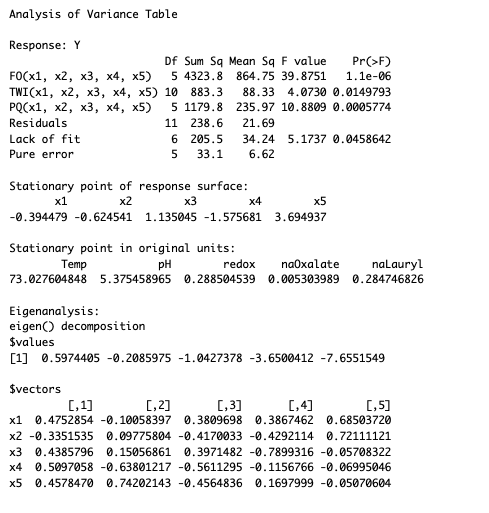

First Model - Anova¶
Model Refinement¶
-
Used \(\alpha=0.05\) for decision making
-
Terms to Keep (8)
-
x1, x2, x3, x1:x2, x1:x3, x1^2, x2^2, x3^2
-
Terms to Remove (12)
-
x4, x5, x1:x4, x1:x5, x2:x3, x2:x4, x2:x5, x3:x4, x3:x5, x4:x5, x4^2, x5^2

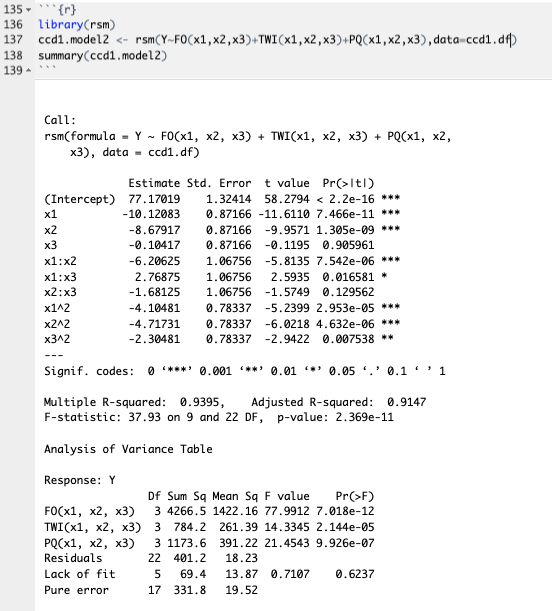

Reduced Model¶

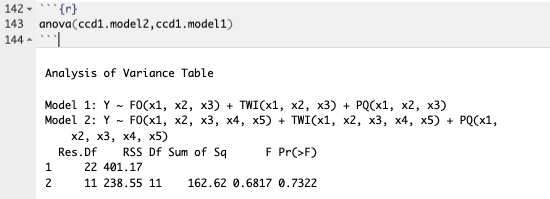

Partial F-test¶
