Lecture 11, September 27
Today's topic is the secant method. The secant method does not utilize derivative information as Newton's method does. The secant method is also similar to the false position method.
Geometric Inspiration

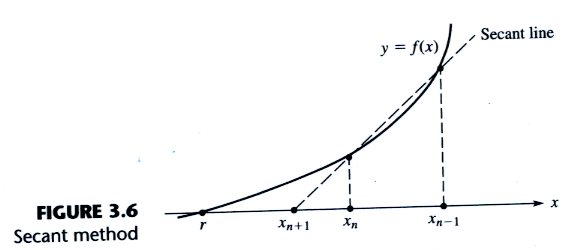

Cheney and Kincaid (2004)2 demonstrate the geometric inspiration for secant method
Secant Method
- The formula is simply
\[
x_{n+1}=x_n - g(x_n)\frac{x_n-x_{n-1}}{g(x_n)-g(x_{n-1})}
\]
Example Problem Used for Newton's Method

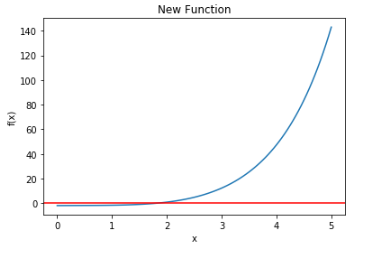

- Consider a new function, \(f(x)=e^x+2^{-x}+2\cos(x)-6=0\)
Pseudo-code

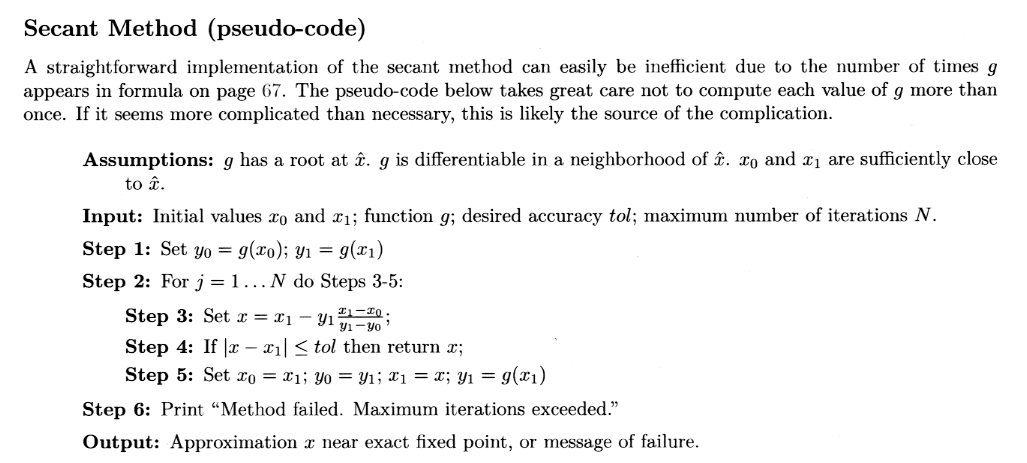

Brin (2020)1provides the following pseudo-code
Convergence
- Brin (2020)1 study the performance of Secant Method
- The secant method converges with order \(\frac{1+\sqrt{5}}{2}=1.62\)
- Not quite as fast as Newton's Method (quadratic)
Similarity to False Position
- Secant method: \(x_{n+1}=x_n - g(x_n)\frac{x_n-x_{n-1}}{g(x_n)-g(x_{n-1})}\)
- False Position method: \(x_r=x_u-\frac{f(x_u)(x_l-x_u)}{f(x_l)-f(x_u)}\)
- Secant method is not guaranteed to bracket result when starting
Speed of Convergence

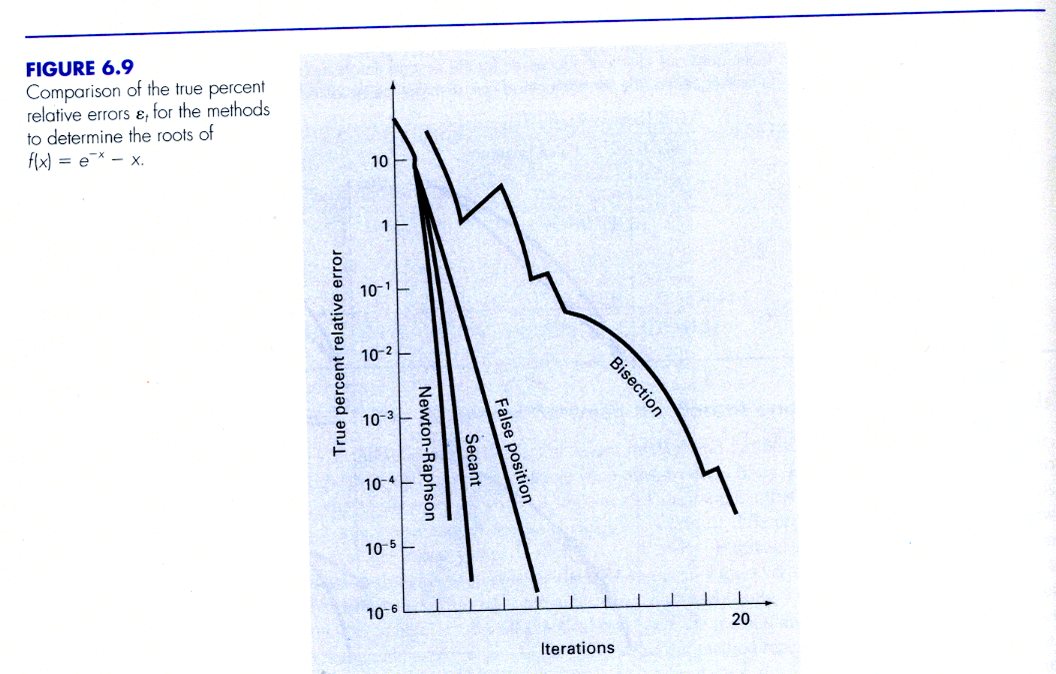

Chapra and Canale (2015)3 compared the performance of various root finding methods
